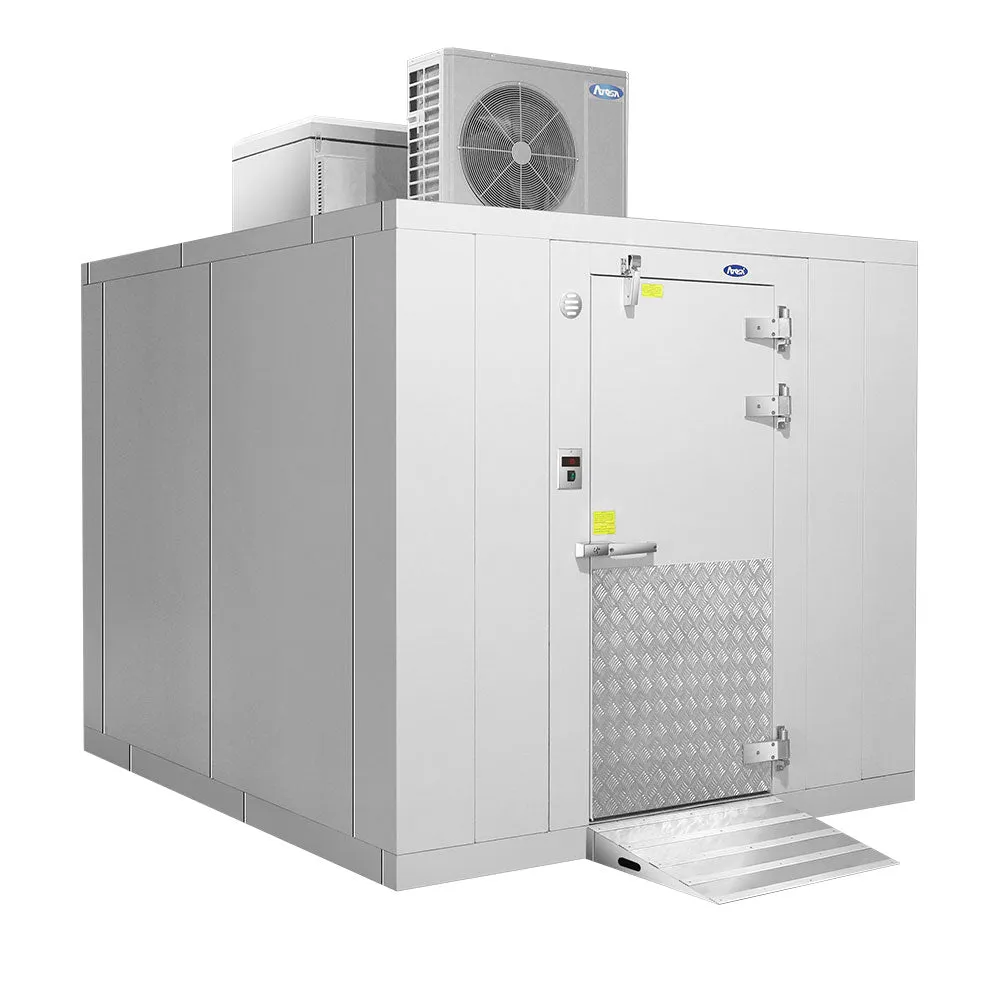

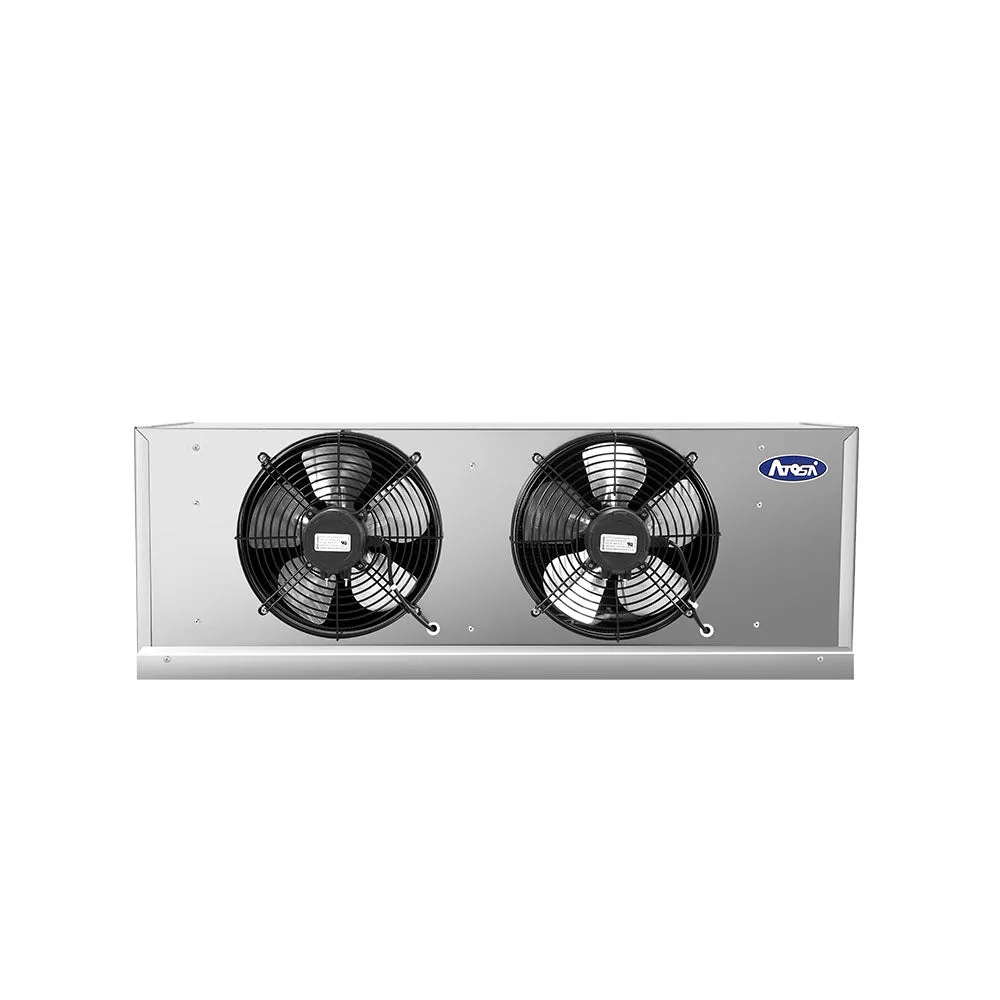

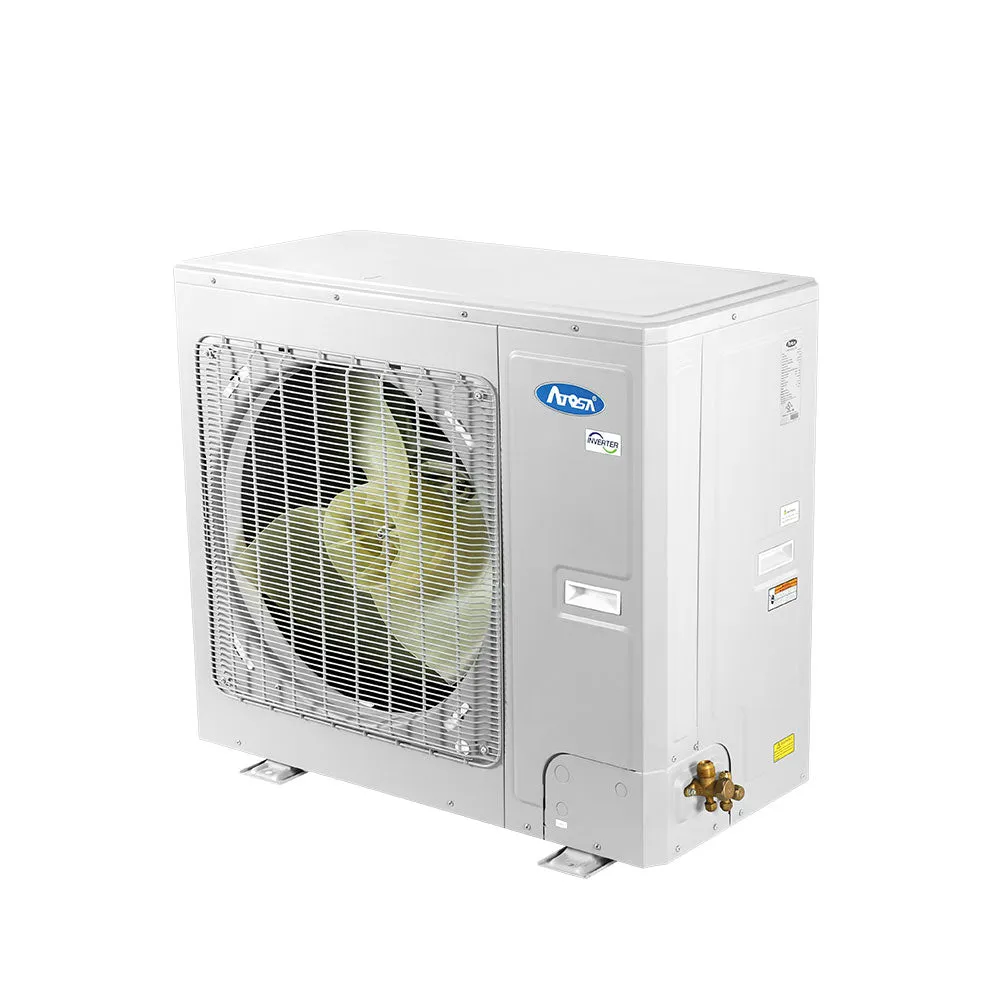

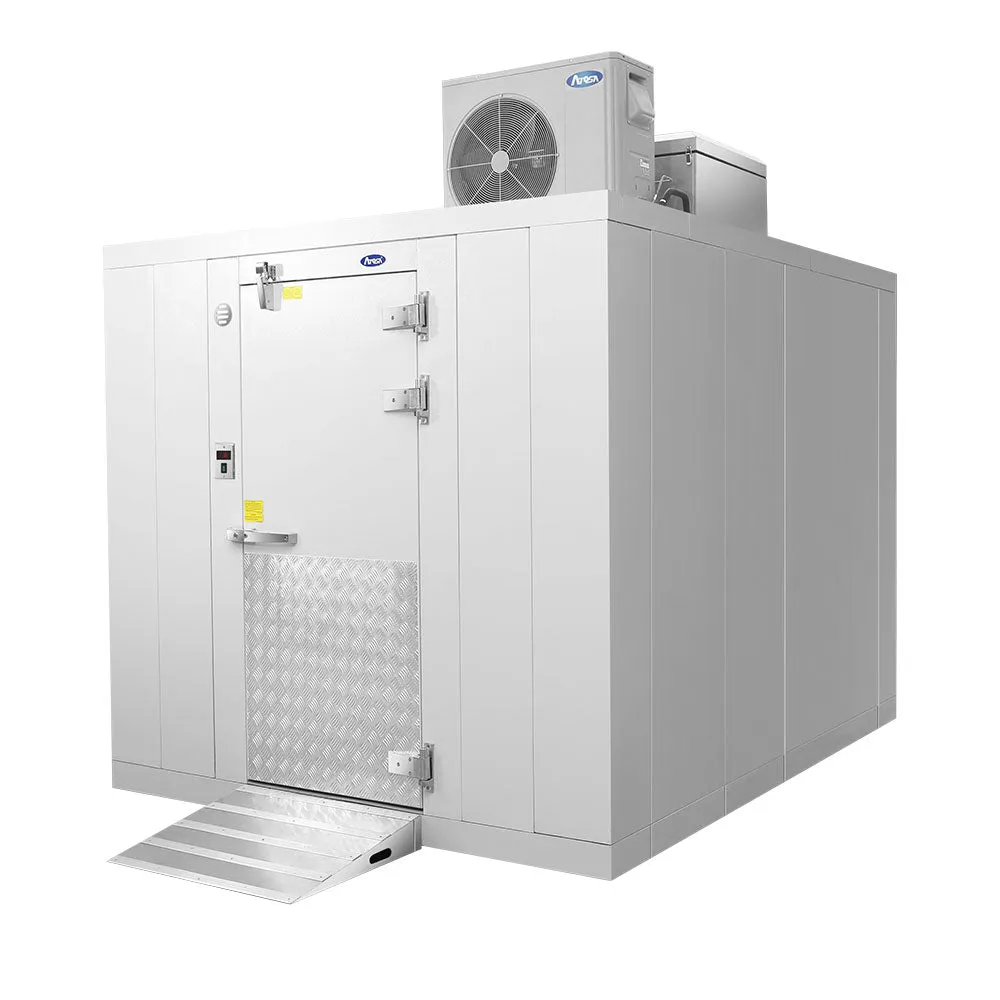

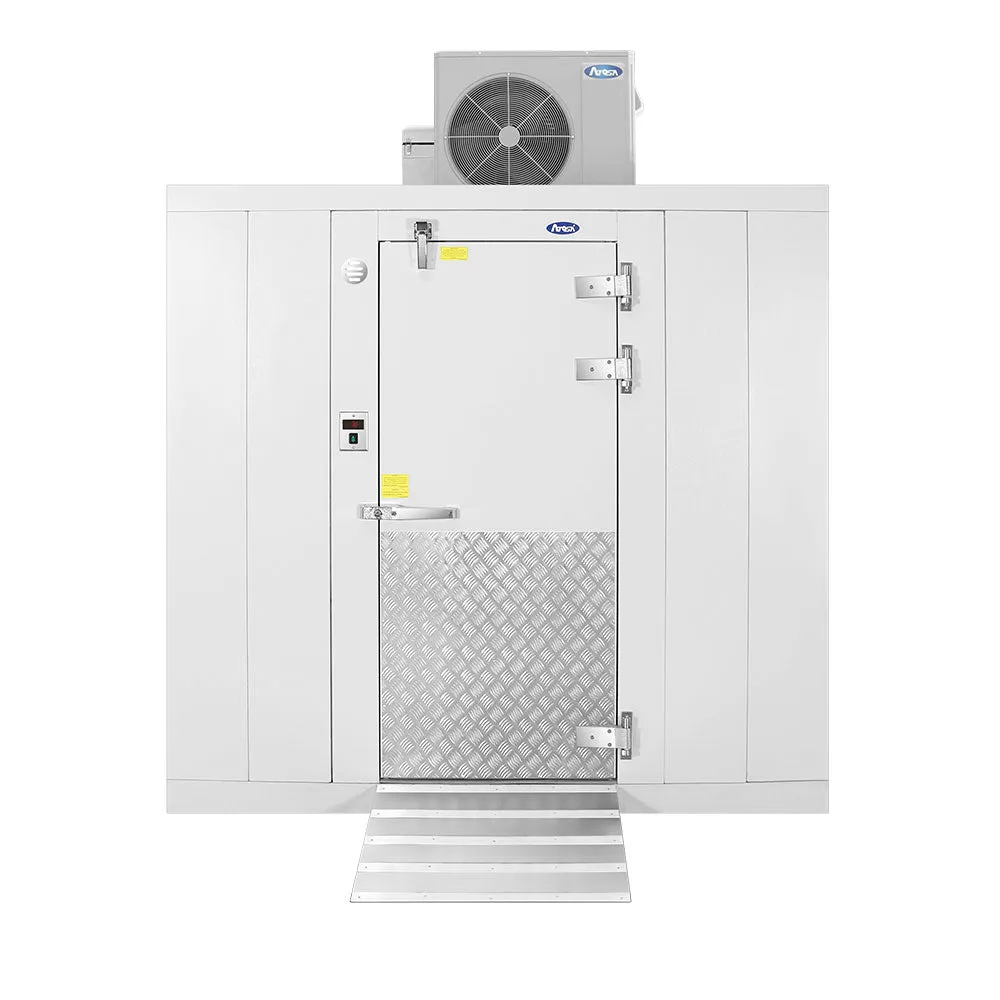

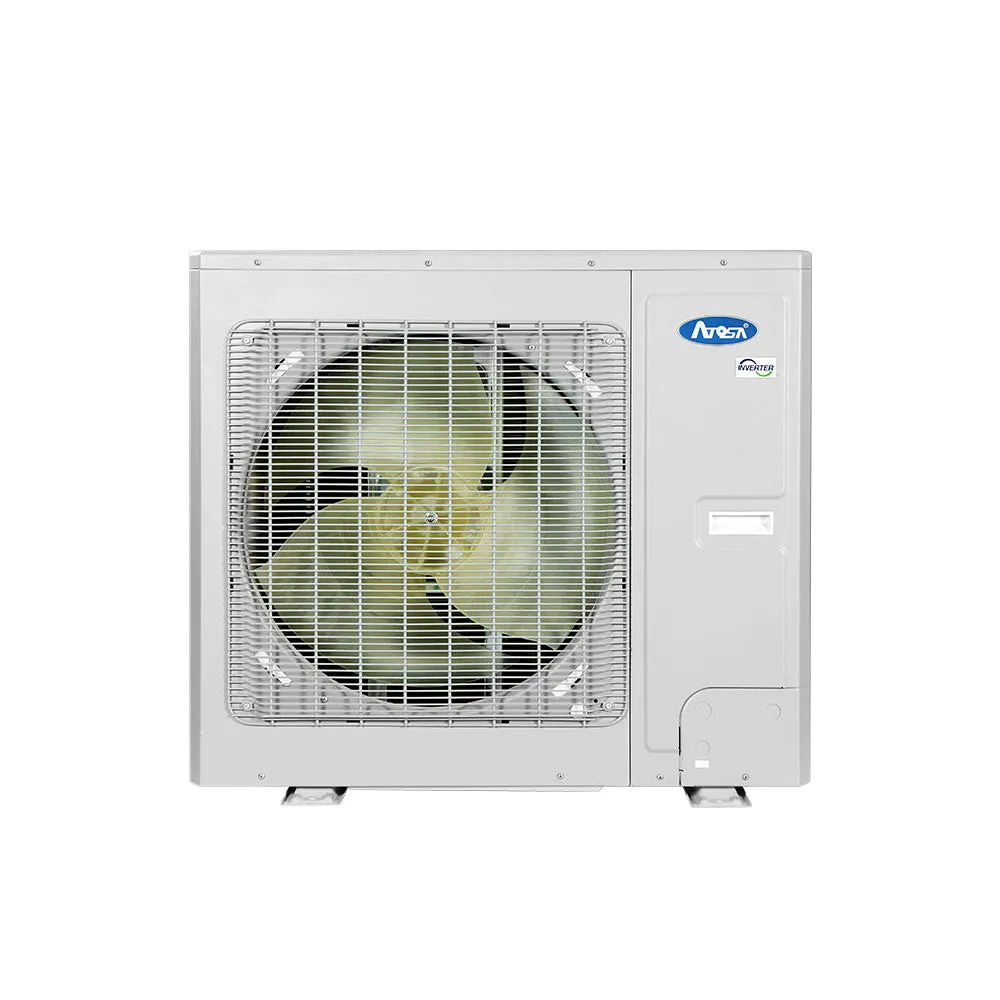

8' x 10' x 7'6" Walk-in Cooler with Reinforced Floor, Diamond Tread Kick Plates on 36" Door, 48" LED Standard, Exterior Ramp, Includes Condensing Unit with 1.5 HP Compressor and Evaporator
Standard Features:
- White exterior & interior
- 20% more efficient than any walk-in series on the market
- Available in nominal sizes from 6’ x 6’ up to 10’ x 12’, all 7’7” high with floor standard (indoor models only)
- Foamed-in-place 4” panels with cam locks

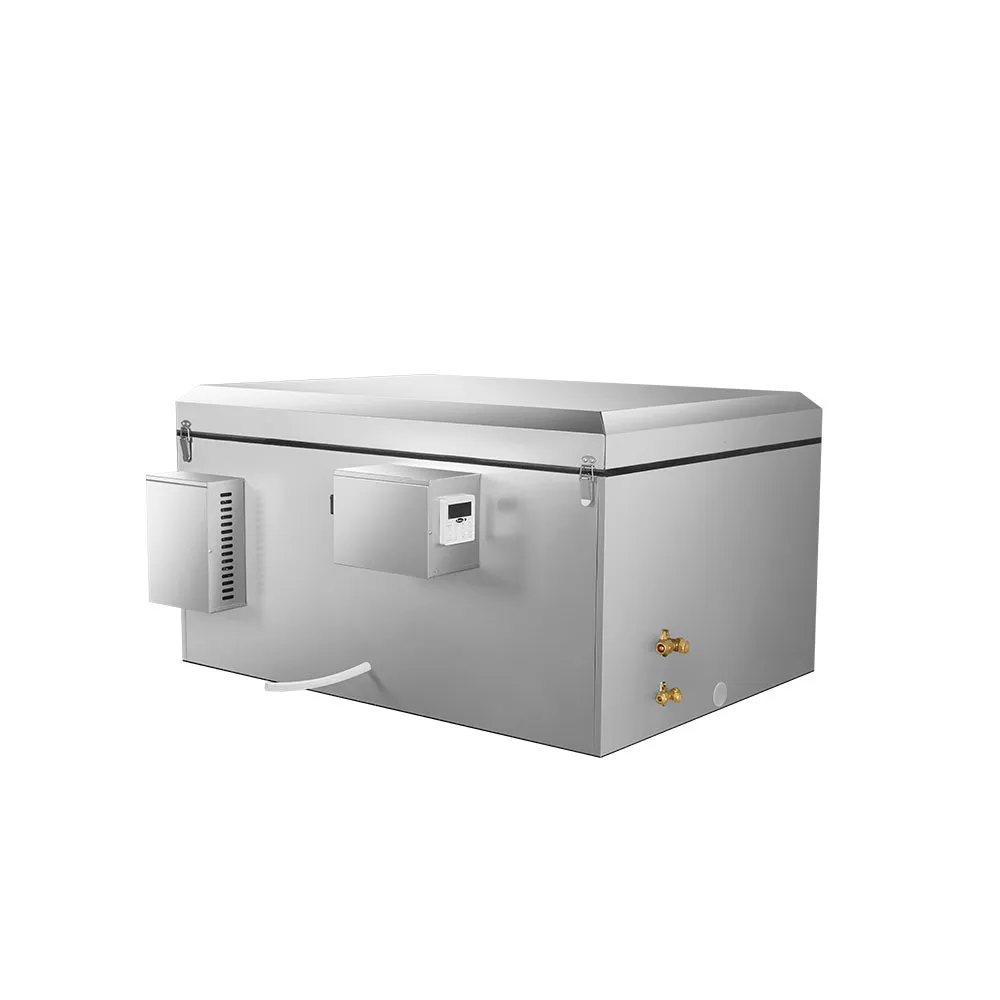

- Top-mount drop-in refrigeration system, with the low noise level and R448A refrigerant (overall height is 10’ with condenser installed, recommend ceiling height 11’)
- 3 spring-loaded heavy duty Kason door hinges standard

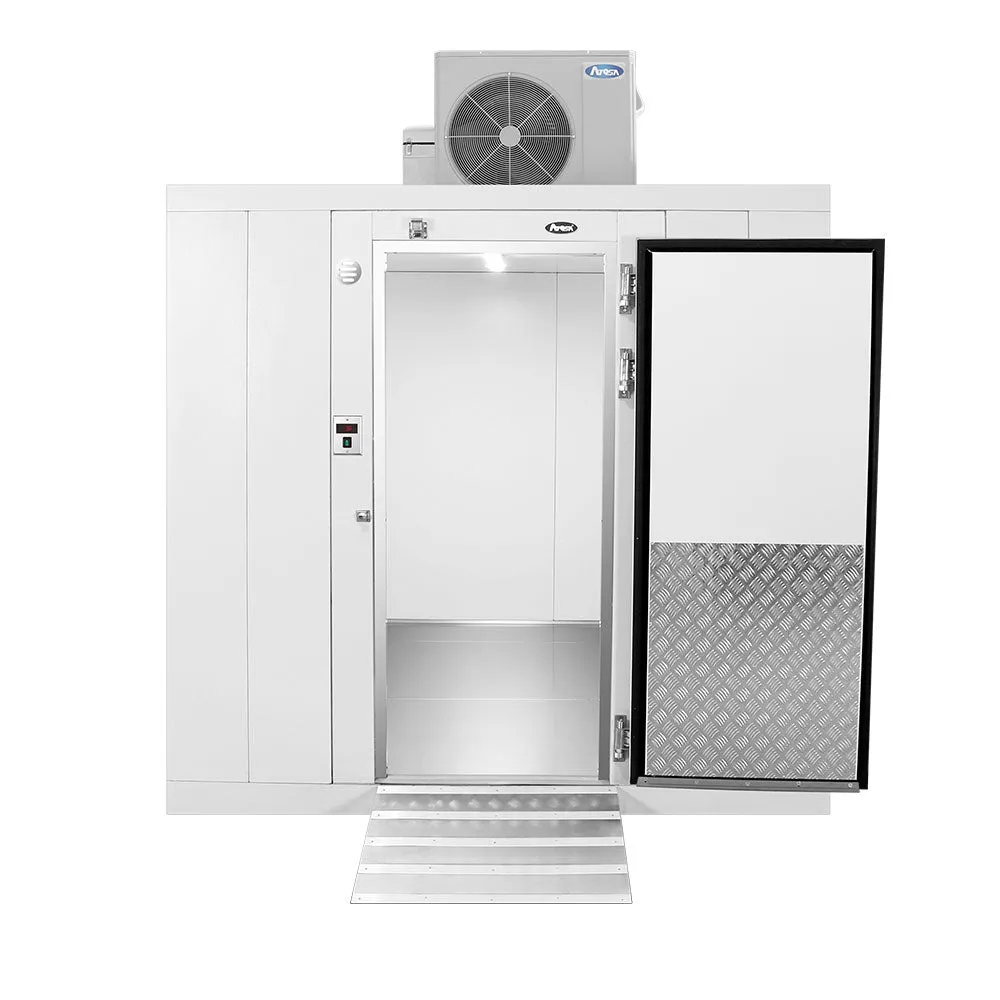

- 36” door with diamond tread kick plates and heated frames standard
- Heavy-duty Kason door closer
- Heavy-duty Kason door handle with lock and inside safety release

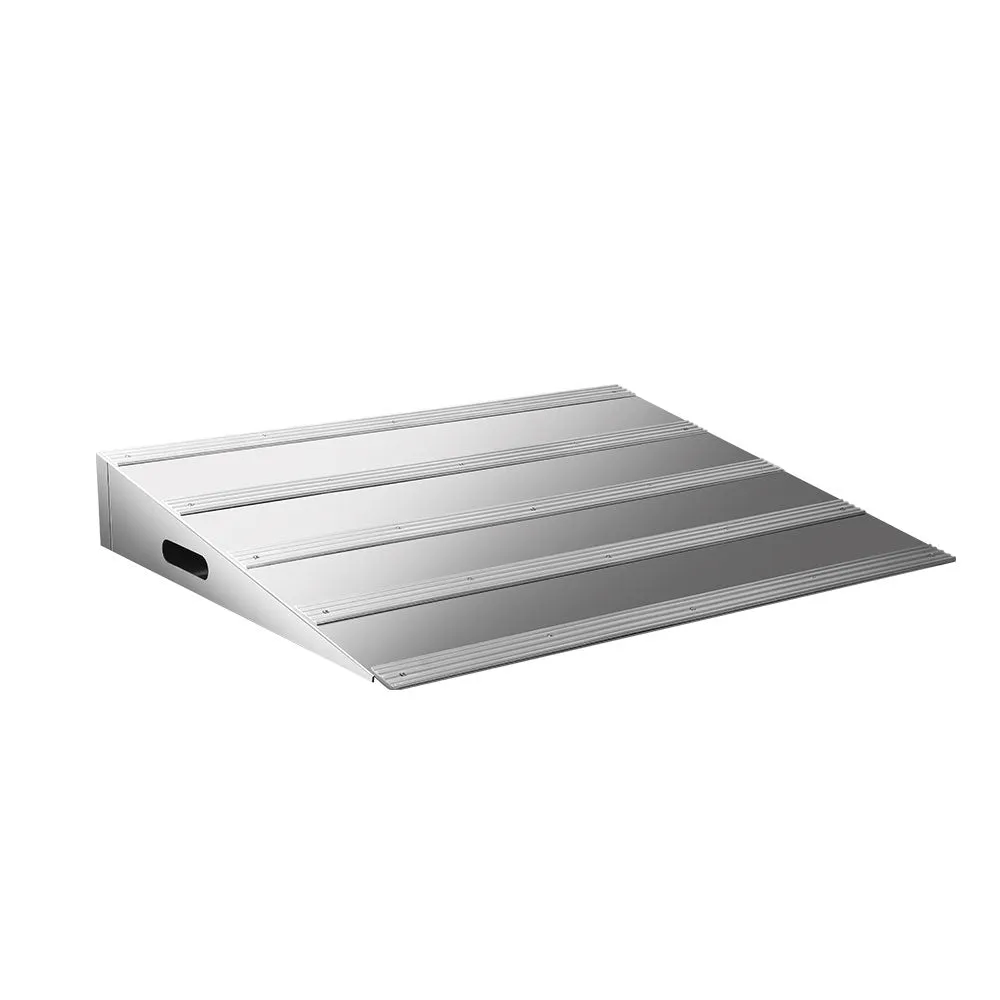

- Exterior ramp standard
- Digital LED light standard
- Reinforced floor standard
- 48” ceiling mount LED standard
- Coolers maintain 33 °F – 38 °F
Specification Sheet:
| Model | Rated Current (A) | Voltage (V/Hz/Ph) | HP | Refrigerant | Exterior Dimensions (inch) | Condensing Unit Weight (lbs) | Evaporator Weight (lbs) | Panel Weight (lbs) |
|---|---|---|---|---|---|---|---|---|
| AWC0810-TF | 40 | 230/60/1 | 1.5 | R448A | 96" x 120" x 117" | 216 | 218 | 1517 |
