Product Description

"Hydraulic Punch Driver Set, Number of Pieces 10, Capacity 10 ga. Stainless Steel, Conduit and Pipe Size 1/2 In. to 2 In., Workpiece Material Stainless Steel, For Use With Hand, Foot and Hydraulic Pumps, Includes 1/2, 3/4, 1, 1-1/4, 1-1/2, 2 In. Slug Splitter Punches and Dies, Draw Studs, Hydraulic Ram, Hand Pump, and Metal Carrying Case view larger view larger Greenlee 7506 Ram and Hand Pump Kit Designed for punching holes in stainless steel, the Greenlee 7506 ram and hand pump kit combines bestselling Slug Splitter SC knockouts with the 11-ton power of the 767 hand pump and 746 ram, providing you with a powerful, compact knockout solution. This kit comes with premium self-centering Slug Splitter SC knockouts. Designed to withstand punching through up to 10-gauge steel, as well as through a variety of other materials, Slug Splitter SC knockouts are long-life, abrasion-resistant, and even split the slug in two for easy removal from the die, saving you time when punching holes. Self-centering Slug Splitters are designed to save you even more time when punching holes in stainless steel. The unique design saves time by automatically centering the punch to the pilot hole, removing the need to mark crosshairs. For use with U.S. standard-size conduit, as well as a variety of other applications, the 7506 ram and hand pump kit is a small, powerful choice for any professional electrician who needs to get the job done faster, safer, and easier than ever before. The Greenlee 7506 ram and hand pump kit comes with six Slug Splitter SC knockouts, six dies, three spacers, two drawstuds, a 3-foot-long high-pressure hose, and a sturdy, compact metal case for easy transport and storage. Hole size is outside diameter of standard U.S. conduit sizes. Example: 1/2"" Slug Splitter SC produces a 7/8"" (22.5mm) Ø hole. Maximum Steel Capacities for Conduit Sizes Slug Splitter SC Size Chart Required Drawstud 1/2"" 3/4"" 1"" 1-1/4"" 1-1/2"" 2"" 7/16"" Drawstud (29451) ✓ 3/4"" Drawstud (29452) ✓ ✓ ✓ ✓ ✓ ✓ Up to 10-gauge stainless steel The 29452 3/4"" drawstud with spacer, 2"" die, and 2"" Slug Splitter SC. view larger Slug Splitter SC Knockouts Slug Splitter SC punches feature a unique design in which the chamfer self centers on pilot hole for perfect alignment every time. Just tighten down the punch on your draw stud and let the new punch center itself on the pilot hole. No more time wasted trying to line up the die alignment marks or drawing crosshairs to ensure alignment. Slug Splitter SC The Slug Splitter's unique design creates a slug as the punch is drawn into the die, Slug is split in half as punching operation is completed. Split slug easily falls free from the die. The 29452 3/4"" drawstud with spacer, 2"" die, and 2"" Slug Splitter SC. view larger Included Components Model Number Description Conduit and Pipe Size Ø Size of Hole Inches Ø Size of Hole mm Ø Size of Hole PG Capacity Stainless Steel GA Capacity Stainless Steel mm 28154 1/2"" Conduit Size Slug Splitter SC Punch 1/2"" 0.885 22.5 16 10 3.5 28155 1/2"" Conduit Size Die 1/2"" 0.885 22.5 16 10 3.5 28156 3/4"" Conduit Size Slug Splitter SC Punch 3/4"" 1.115 28.3 21 10 3.5 28157 3/4"" Conduit Size Die 3/4"" 1.115 28.3 21 10 3.5 28158 1"" Conduit Size Slug Splitter SC Punch 1"" 1.362 34.6 -

Amazon.com

view larger
view larger

Greenlee 7506 Ram and Hand Pump Kit

Designed for punching holes in stainless steel, the Greenlee 7506 ram and hand pump kit combines bestselling Slug Splitter SC knockouts with the 11-ton power of the 767 hand pump and 746 ram, providing you with a powerful, compact knockout solution.

This kit comes with premium self-centering Slug Splitter SC knockouts. Designed to withstand punching through up to 10-gauge steel, as well as through a variety of other materials, Slug Splitter SC knockouts are long-life, abrasion-resistant, and even split the slug in two for easy removal from the die, saving you time when punching holes.

Self-centering Slug Splitters are designed to save you even more time when punching holes in stainless steel. The unique design saves time by automatically centering the punch to the pilot hole, removing the need to mark crosshairs. For use with U.S. standard-size conduit*, as well as a variety of other applications, the 7506 ram and hand pump kit is a small, powerful choice for any professional electrician who needs to get the job done faster, safer, and easier than ever before.

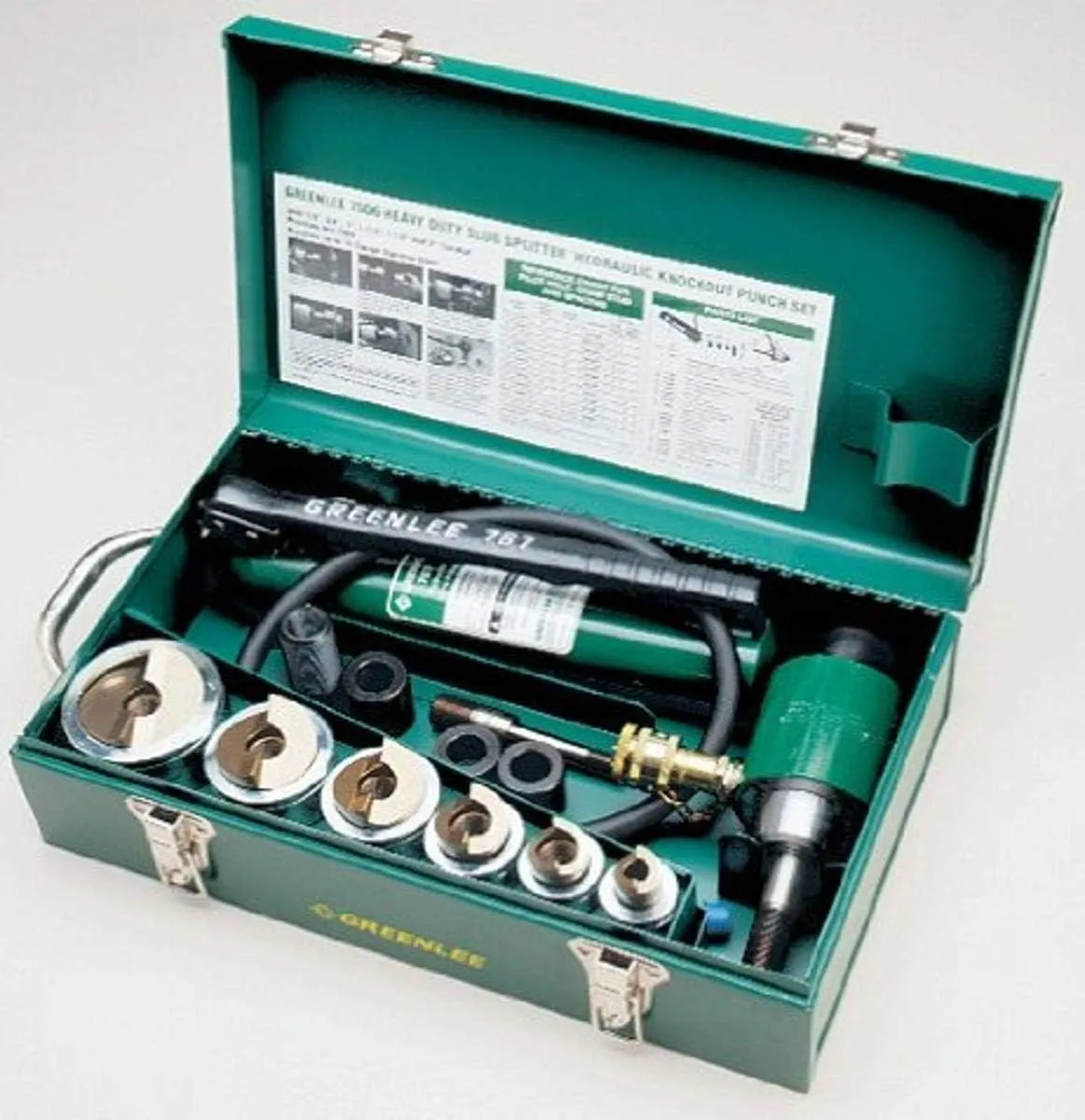

The Greenlee 7506 ram and hand pump kit comes with six Slug Splitter SC knockouts, six dies, three spacers, two drawstuds, a 3-foot-long high-pressure hose, and a sturdy, compact metal case for easy transport and storage.

* Hole size is outside diameter of standard U.S. conduit sizes. Example: 1/2" Slug Splitter SC produces a 7/8" (22.5mm) Ø hole.

Maximum Steel Capacities for Conduit Sizes

✓ Up to 10-gauge stainless steel

Slug Splitter SC Knockouts

Slug Splitter SC punches feature a unique design in which the chamfer self centers on pilot hole for perfect alignment every time. Just tighten down the punch on your draw stud and let the new punch center itself on the pilot hole. No more time wasted trying to line up the die alignment marks or drawing crosshairs to ensure alignment.

The Slug Splitter's unique design creates a slug as the punch is drawn into the die,

Slug is split in half as punching operation is completed.

Split slug easily falls free from the die.

Included Components

About Greenlee

Founded in 1862, Greenlee is a leader when it comes to developing innovative tools for the professional tradesperson. From barrel-making beginnings to the present day selection of wire/cable installation tools, electronic testing and measurement instruments and other solutions, Greenlee continues to be a respected and trusted source for both professional and enthusiast tools. Whatever your tooling need, you can always rely on Greenlee to make your job faster, safer and easier.

From the Manufacturer

The Greenlee 7506 Kit Features Slug-Splitter Self Centering knockout punches with capacities up through 10 gauge (3.5 mm) stainless steel. Self-centering punch aligns itself on pilot hole. No need to draw crosshairs or line up die alignment marks. Unique punch profile also splits slugs for easier slug removal. Heavy-duty dies and stainless steel draw studs for longer life. Excellent abrasion resistance for punching fiberglass and plastic. The included pump and are fast, easy and simple to operate. Compact design makes this a perfect choice for use on construction sites and maintenance jobs. Will also drive 751 Cable Cutter head. Powerful 11-Ton hydraulic ram.
