- 200 MHz MSO with 4 channels, 8GS/s, 100Mpoint memory and PLA2216 logic probe
- Four channel, 200 MHz mixed signal oscilloscope
- This package includes a PLA2216 logic probe
- Up to 8 GSa/s real-time sample rate
- 100 Mpts memory depth, optional memory depth up to 200 Mpts

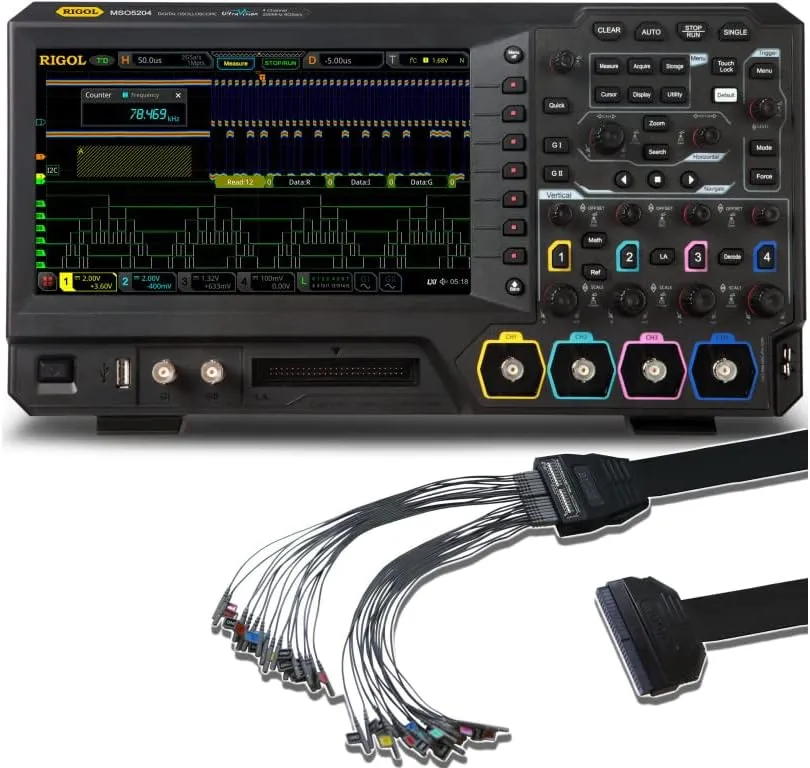

Rigol MSO5204 LA KIT - Four Channel, 200 MHz Mixed Signal Oscilloscope with PLA2216 Logic Probe Four channel, 200 MHz mixed signal oscilloscope This package includes a PLA2216 logic probe Up to 8 GSa/s real-time sample rate 100 Mpts memory depth, optional memory depth up to 200 Mpts Integrates seven instruments into oneThe Rigol MSO5204 is a four channel, mixed signal oscilloscope with a real time sample rate of up to 8 GSa/s. Easily upgraded, it features a 100 Mpts memory depth which is upgradable to 200 Mpts via software key code. This package includes the PLA2216 logic probe.The Rigol MSO5000 series digital oscilloscope is a high performance instrument based on Rigol's UltraVision II technology. With a real time sample rate of up to 8 GSa/s and extremely high memory depth, the MSO5000 seamlessly integrates 7 instruments into one - oscilloscope, logic analyzer, spectrum analyzer, arbitrary waveform generator and much more. The MSO5000 also features a 9 inch, capacitive multi touch screen with 256 level intensity grading and color persistence.Small Body, Big UseThe innovative physical appearance and thin design of the instrument not only make the LCD display prominent, but also make it portable and easy to operate.xxSuper High Sample Bandwidth RatioWhile maintaining the super high sample rate of 8 GSa/s, the MSO5000 series also has a maximum of 200 Mpts memory depth, enabling itself to capture more events in one acquisition. This provides sufficient time for users to observe while retaining the waveform details to a large extent. Thus, users can not only get the detailed information about the waveforms, but also can take an overview of the waveforms.7 into 1 Integrated Digital OscilloscopeIn today's integrated design field, a comprehensive digital oscilloscope has become a useful tool for design engineers.
