ball valve
Good Service -- If any problem please feel free to contact
The water shut off tool valve is designed to withstand high pressure and temperature extremes. Lasts longer than plastic valves which can crack or leak. Ideal for or leisure facilities.
【Easy Installation】-- No further modification direct replacement

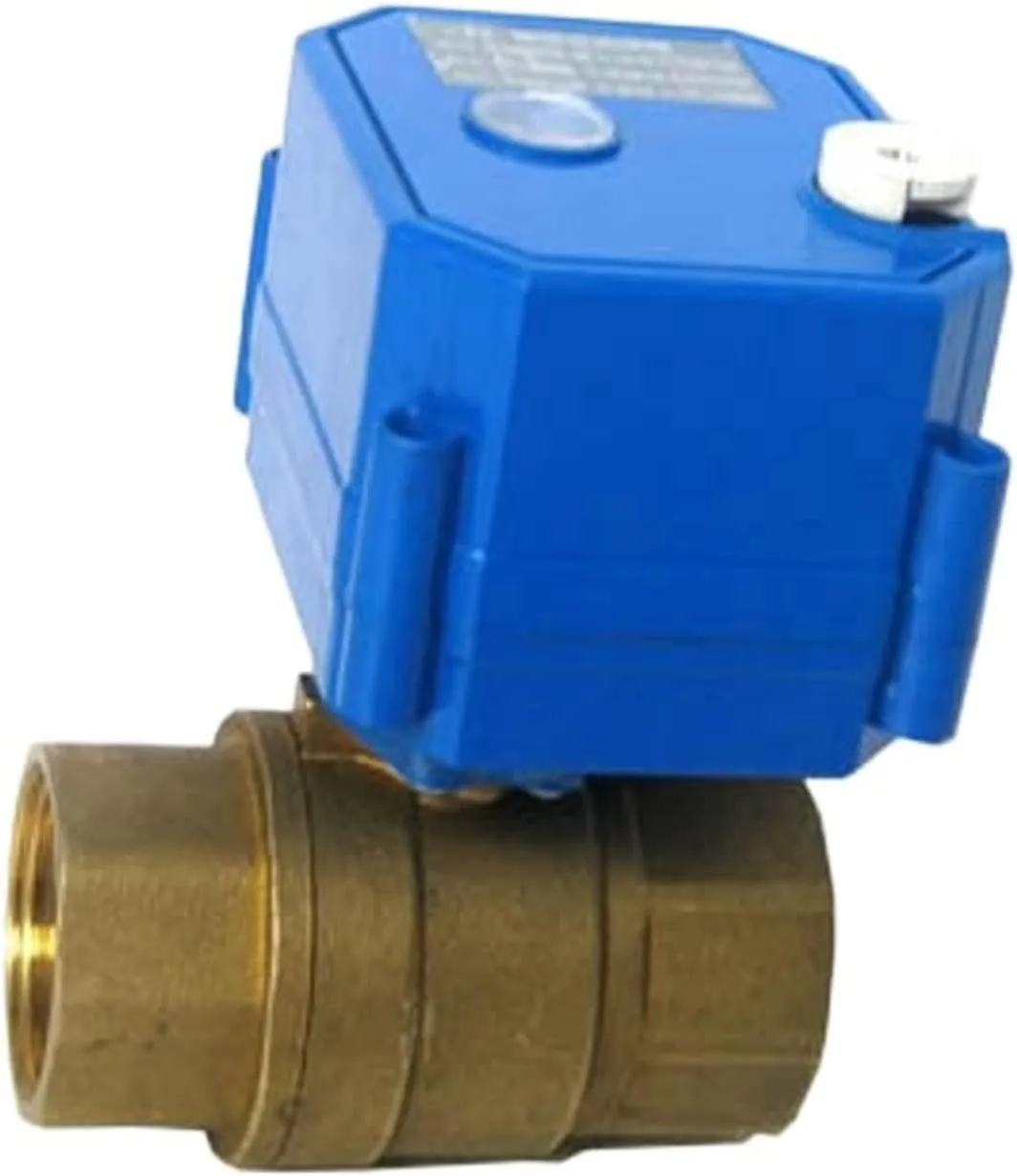

CWX-25S 1-1/4'' DN32 2-way brass mini motorized ball valve with manual override function and position indicator DC24v CR01 2 wire
CWX-25S-DN32 brass-DC24v-CR01
Specification :
Product size : 1-1/4" DN32
Maximum working pressure : 1.0Mpa
circulation means : water air gas.
rated voltage : DC24V DC9-24v
Wiring Control Methods : CR01
Open / close time : 5Sec
Valve body material : brass
<;;5W
Actuator Material : engineering plastics
Rotation of actuator 90 degree
Max.Torque output : 2.5n. m
Medium temperature: 0-90°C
Manual override : Yes
Position indicator:Yes
Protection class : IP65
Features:
1. beautiful appearance compact all-metal gear transmission mechanism reliable performance output torque long life;
2. the electrical spacing positioning accuracy consistency is very high;
3. actuator and valve assembly can be multi-angle assembly convenient in demand for space allocation;
4. Ball floating seal structure no drip suitable for heavy dirt and long-term non-action situations
5. Replace solenoid valve or solenoid valve does not work properly environment;
6. Protection level can reach IP65 can be used in a relatively humid environment.
